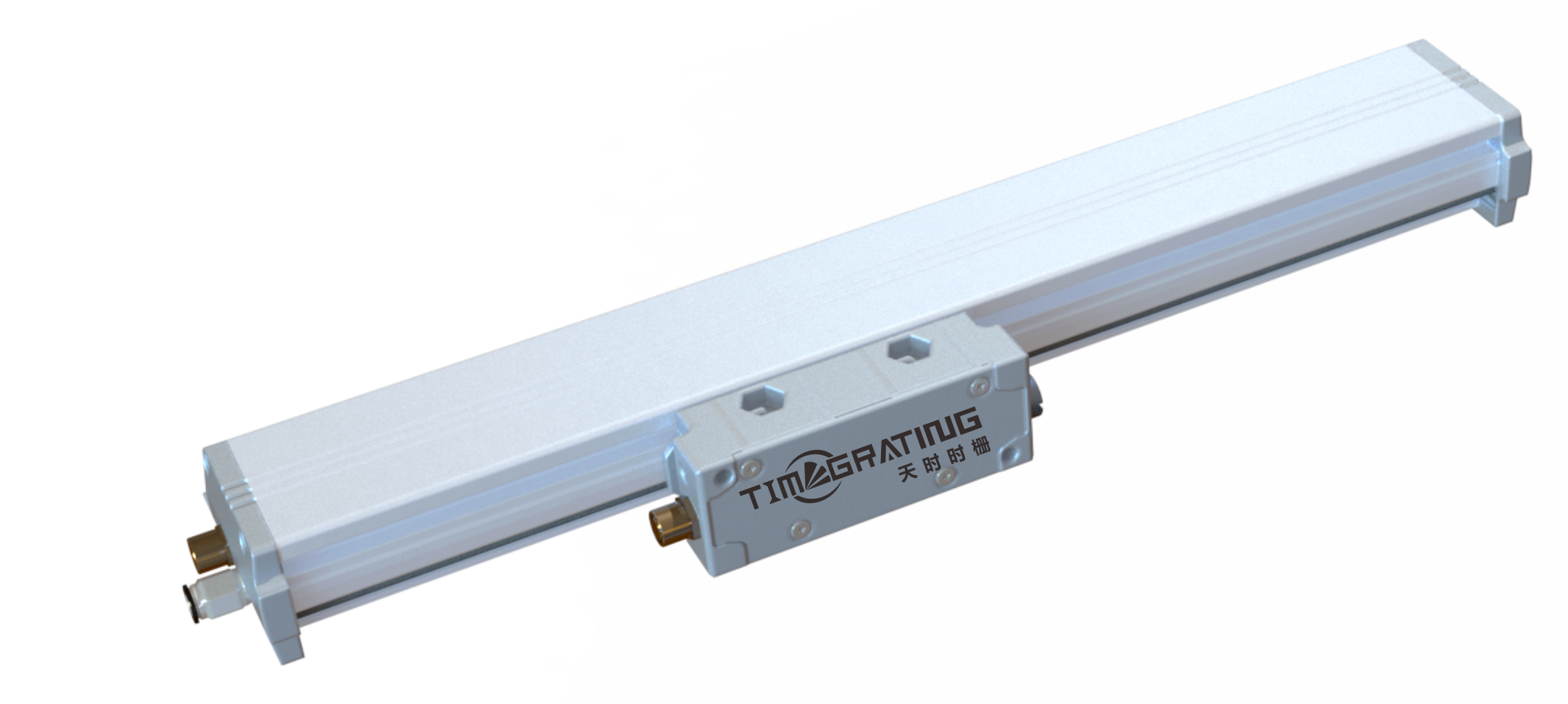

LSA Linear Sensor
The closed structure features a metal casing to protect the sensing structure and precision bearings, preventing dust and cutting fluid from entering. It is robust in structure and has strong vibration resistance.
Sealed air can be connected as needed to endow it with stronger anti-pollution performance.
INQUIRY NOW

SHARE

DESCRIPTION

Parameter

Product ParametersLSA Sensor
Accuracy class±3µm/m, ±5µm/m
Resolution10nm/50nm/100nm
Measurement length (mm)140,240,340,440,540,640,740,840,940,1040,1140,1240,1340,1540,1640,1740，1840
Communication protocolsBISS-C, SSI, RS485/RS422
Interface level TTL differential
Cable lengthStandard 1m/3m/6m are available for selection
Power supply voltage5V DC±10%
Consumed current200mA
Movement Speed180m/min
Requirements for motion force≤4N
Shock and vibration: 55-2000 HzShock: 400, Vibration: 200
Operating temperature0 to +50℃
Protection gradeStandard IP53, using compressed air IP64
QualityThe measurement length is 0.5kg+3.75kg/m
*If you have any other requirements for resolution, length or other indicators, please feel free to contact our company

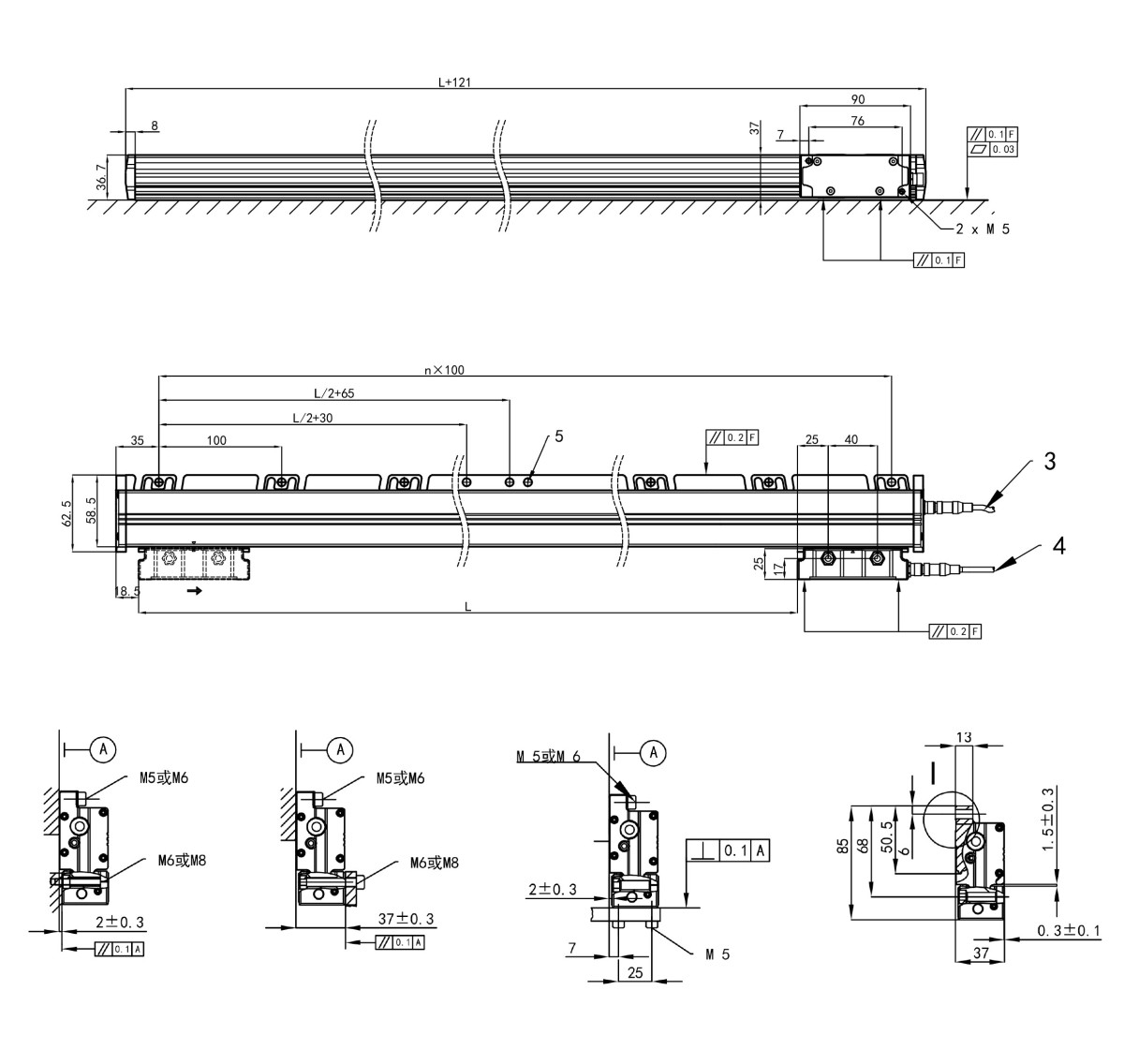

Dimensions and Installation instructions

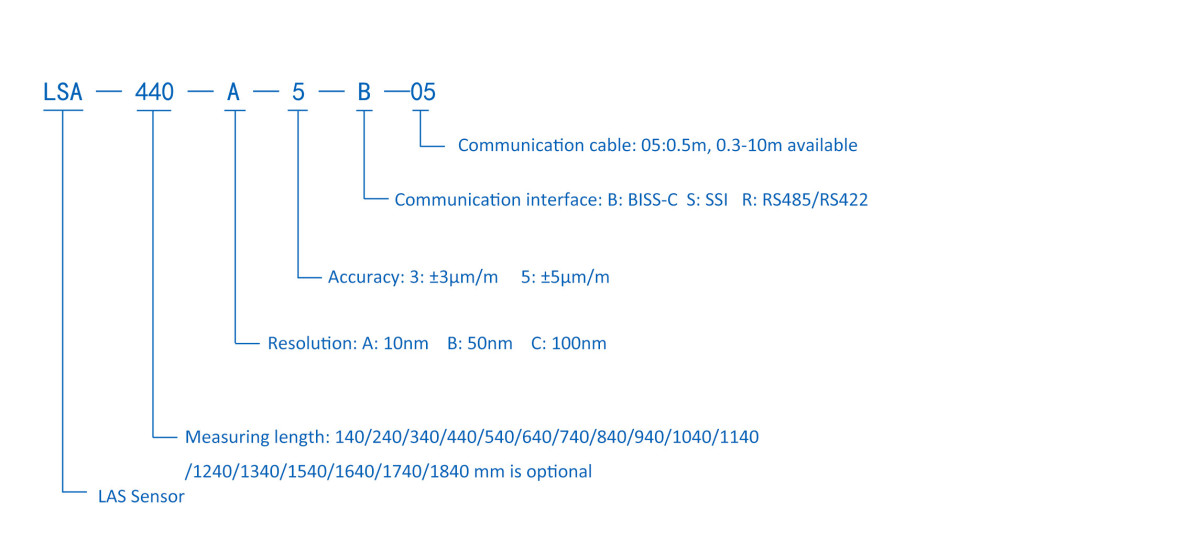

Description of order number
