AEF100A encoder series
The outer diameter is 125mm, and the thickness is 34mm.
Accuracy ±2 "/±3".
Accuracy ±2 "/±3".
INQUIRY NOW
SHARE
DESCRIPTION

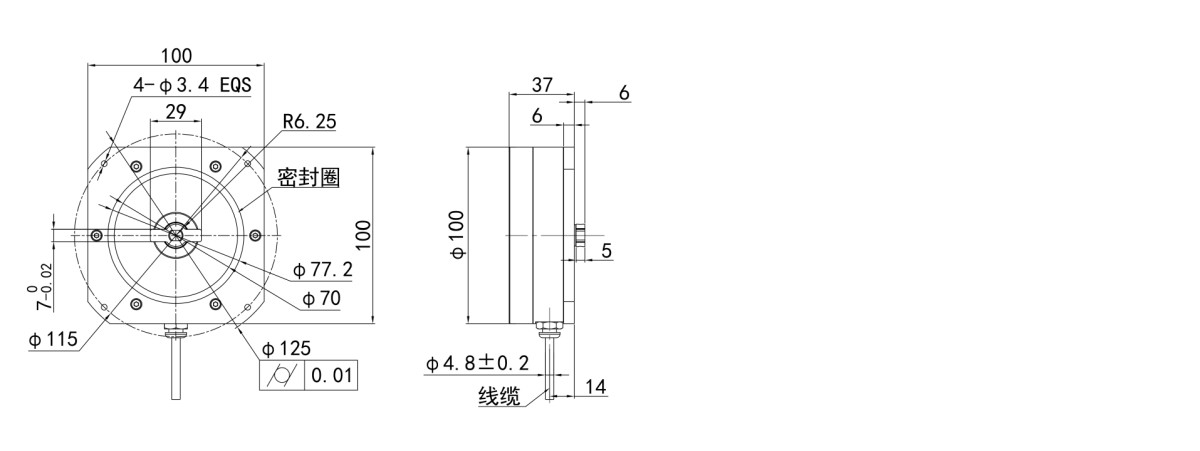

Dimensions

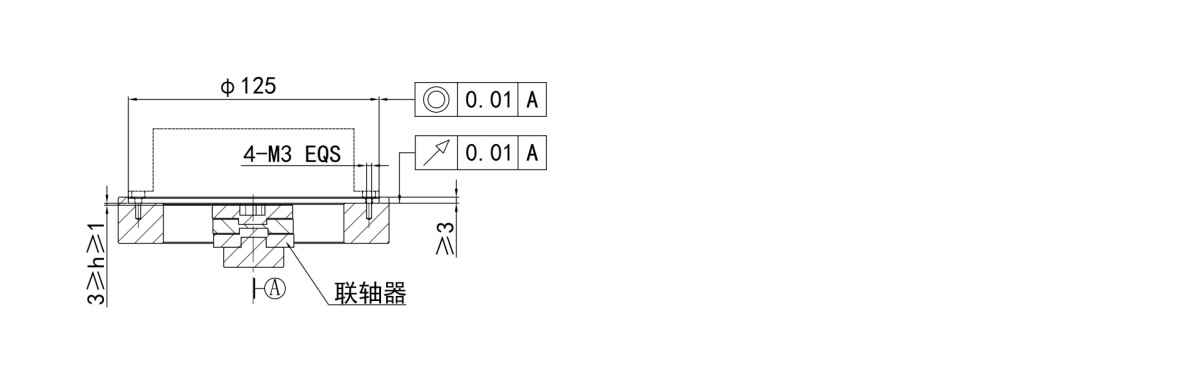

Mechanica linstall ation requirements
[1]: The primary installation should ensure the height difference between the diameter jump, end jump, and the installation steps of the stator and rotor. The installation indicator light is only for auxiliary installation reference, and the light color is not the first reference index. The gap value is subject to actual measurement.
