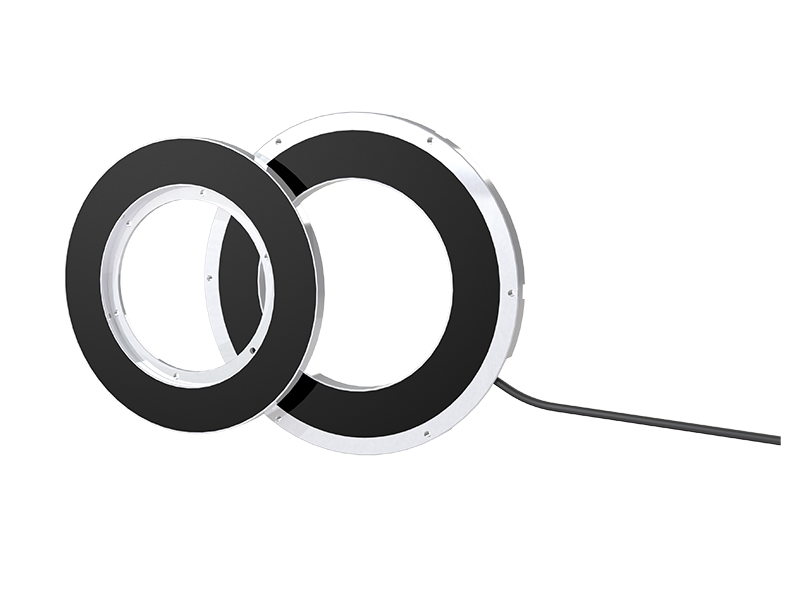

SEF170A encoder series
The outer diameter is 170mm, the through hole diameter is 90mm, and the thickness is 19mm. Accuracy ±5″, ±3″ optional.
Repeatability ±1.5″.
Absolute and incremental angle encoders.
With LED indicator light to assist the installation function, the installation is convenient.
Repeatability ±1.5″.
Absolute and incremental angle encoders.
With LED indicator light to assist the installation function, the installation is convenient.
INQUIRY NOW
SHARE
DESCRIPTION
Dimensions
Mechanica linstall ation requirements
Description of order number
[1]：Viewed from the time grid stator to the rotor, when the rotor rotates clockwise , the angle increases, that is, the clockwise direction; when the rotor rotates counterclockwise, the angle value increases, that is, the counterclockwise direction.
