UEF081A encoder series
The outer diameter is 81mm, the through hole diameter is 45mm, and the thickness is 7.6mm.
Accuracy ±10″.
Repeatability ±5″.
Absolute angle encoding.
With LED indicator light to assist the installation function, the installation is convenient.
Accuracy ±10″.
Repeatability ±5″.
Absolute angle encoding.
With LED indicator light to assist the installation function, the installation is convenient.
INQUIRY NOW
SHARE
DESCRIPTION

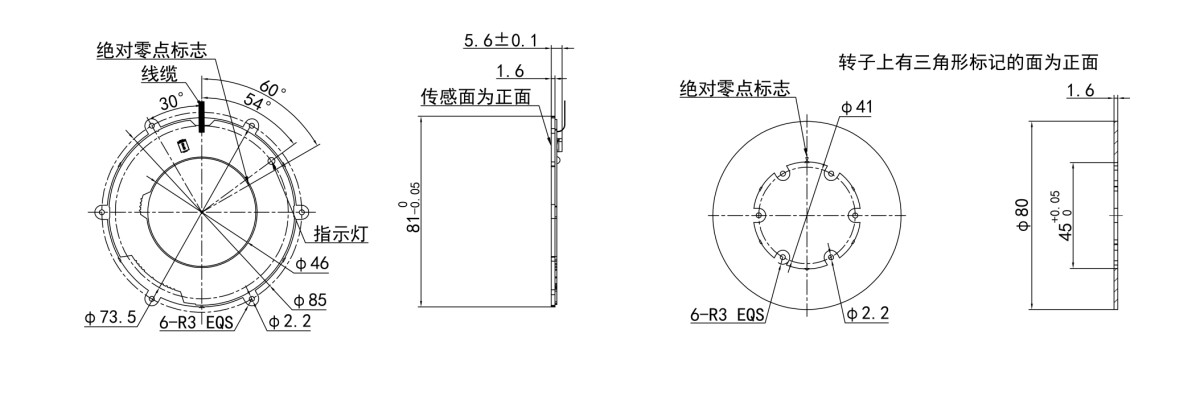

Dimensions

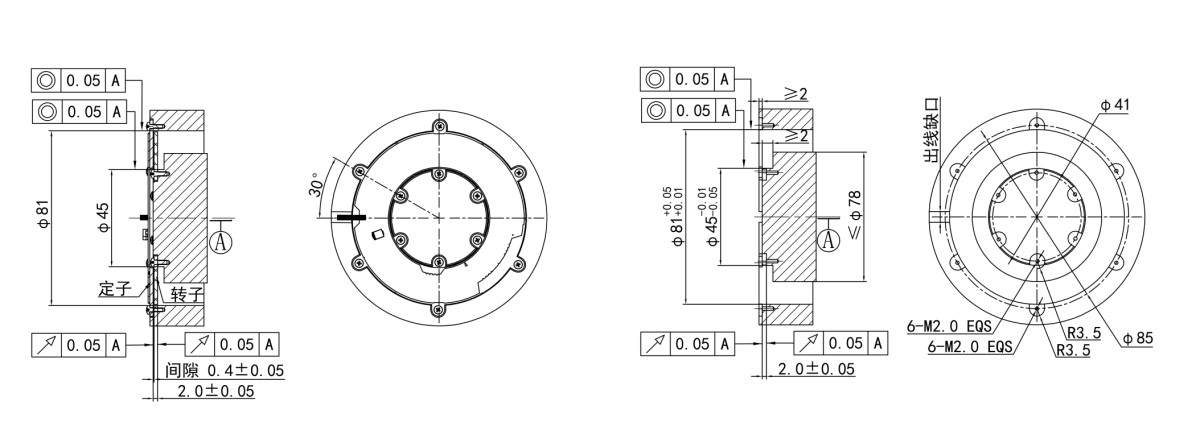

Mechanica linstall ation requirements

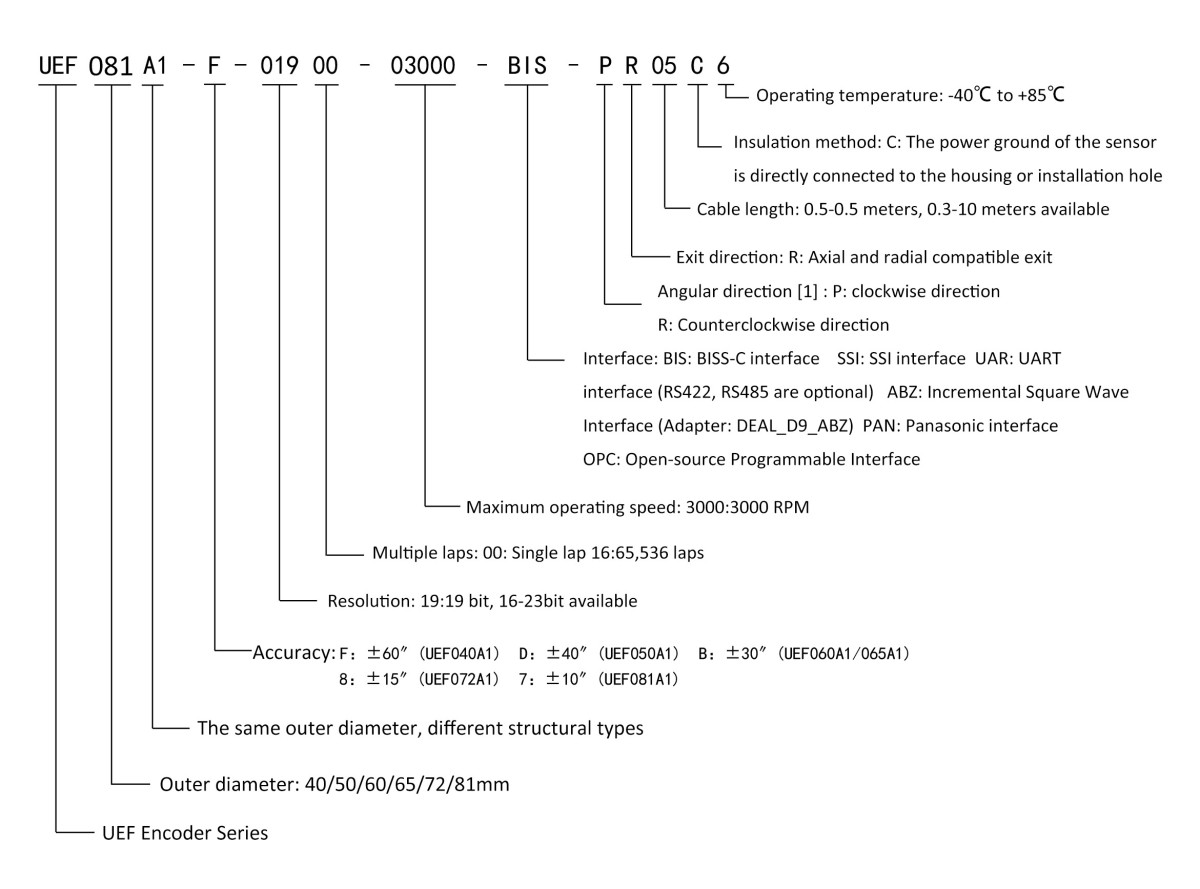

Description of order number
[1]: Viewed from the time grid stator to the rotor, when the rotor rotates clockwise, the angle increases, that is, the clockwise direction; when the rotor rotates counterclockwise, the angle value increases, that is, the counterclockwise direction.
