  • LEAD16

›

LEAD16
Ultra high measurement accuracy, up to ± 3 μ M/m.
Ultra high resolution, up to 50nm.
Resistant to oil pollution, dust, and water vapor.
Multiple protocols, supporting ABZ and other customized serial protocols.
Easy to install, ultra-high response.
INQUIRY NOW

SHARE

DESCRIPTION

Parameter

Measurement benchmark, linear expansion coefficient

Precision metal substrate 9.9 μ Mm/℃

Accuracy level±3μm/±5μm
Maximum pulse frequencyBISS-C:0.5～5MHz，SSI:0.5～2MHz，UART:115200bps
Resolving power100nm/50nm
Movement speed (m/min)≤180/≤120/≤60
Optional ruler lengthSee Appendix 1
Communication protocolBISS-C、SSI、UART
Interface levelTTL differential (RS422 differential)
Power supply voltage5V DC±10%
Consumption current230mA
Working temperature 0～+70℃
Reading head protection levelIP40
Vibration (55Hz to 2000Hz)≤500m/s2（IEC60068-2-6）
Impact 6ms≤1000m/s2（IEC60068-2-27）
Reading head weight18g
Cable weight42g/m


Appendix 1

The reading head leads in the opposite direction to the fixed length lead

Total length of the ruler (mm)230
330430530630730830930
Effective stroke (mm)157257357457557657757857


The reading head leads in the same direction as the fixed length lead

Total length of the ruler (mm)230
330430530630730830930
Effective stroke (mm)137237337437537637737837

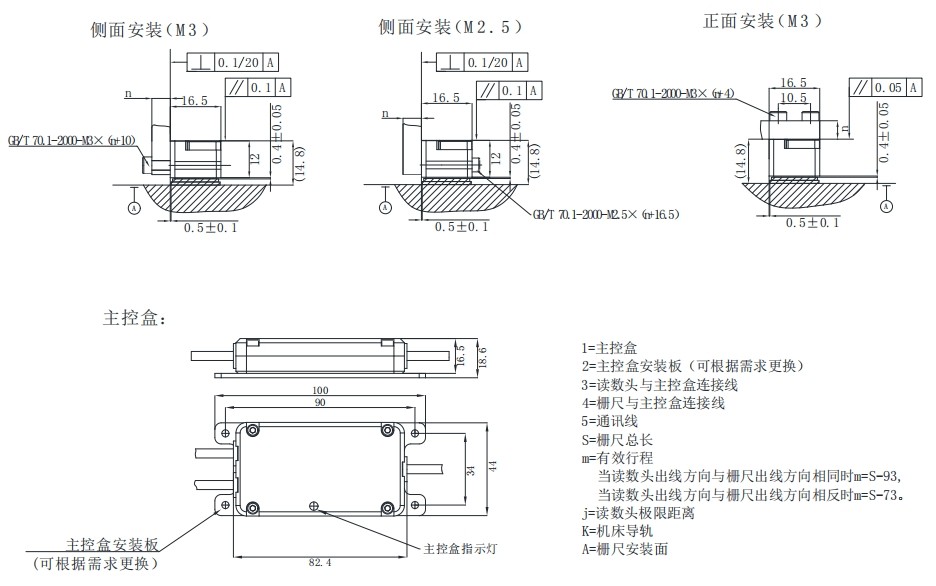

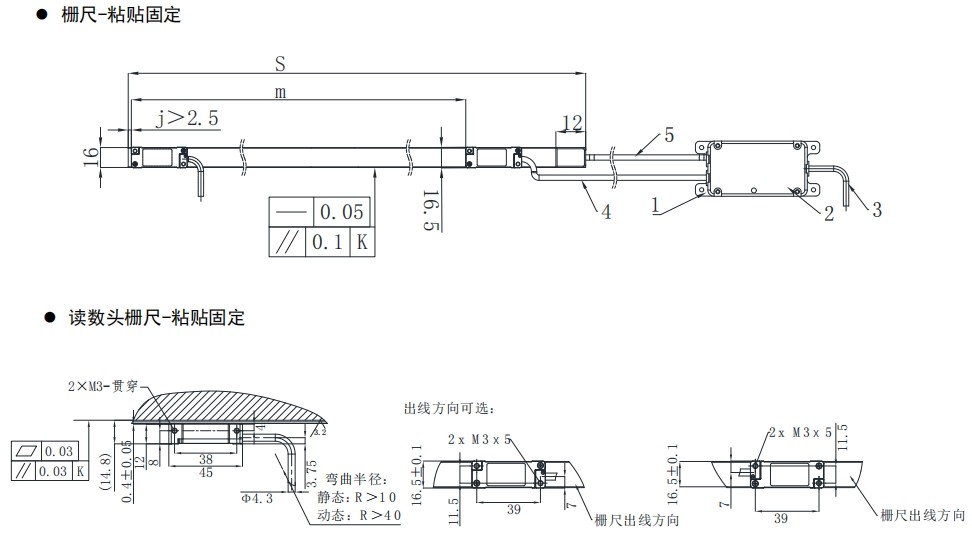

External dimensions





Installation instructions
